How to use Angular HttpClient and RxJS to consume REST API

Angular HttpClient and RxJS


Today I am going to discuss how you can interact with REST API services to load and manage data.

Prerequisites

Before getting started, you need to have the below software installed on your development machine:

Node.js and npm. You can install both of them from the Node.js

Angular CLI  (You can install it from npm using: npm install -g @angular/cli)


Frontend applications needs to call backend services over http/https protocol to manage dynamic data. Best place to access data from backend APIs are service component. Once you defined your service class you can inject it in to component or another service to use the service methods.

Angular Related Articles:

Angular provides the HttpClient service class in @angular/common/http module to interact with backend REST API services.

Using HttpClient request call you can easily handle your response and you can intercept your request and response. By intercepting the request, you can inject your security token or any other requested headers to all the service inside the one place. By intercepting the response, you can handle all the errors in a single place. I will explain interceptor concept in another chapter with more details.

Today we will check how you can use HttpClient methods to do get data from service API. Get method of HTTP Client returns RxJS observable type and you can subscribe to the RxJS observable inside the component where you call the service method.

If you look at my flower store code in GitHub, you can see I have hard coded flower objects and put them into an array as below.


  mySellingFlowers(){
    let rose = new flower();
    rose.name = "Rose";
    rose.price = 100;
    rose.availableQuantity = 1000;
    rose.isChecked = false;
    this. myFlowerList.push(rose);

    let lily = new flower();
    lily.name = "Lilly";
    lily.price = 80;
    lily.availableQuantity = 2000;
    lily.isChecked = false;
    this. myFlowerList.push(lily);

    let tulip = new flower();
    tulip.name = "Tulip";
    tulip.price = 100;
    tulip.availableQuantity = 2300;
    lily.isChecked = false;

    this. myFlowerList.push(tulip);

    let carnation = new flower();
    carnation.name = "Carnation";
    carnation.price = 50;
    carnation.availableQuantity = 1500;
    lily.isChecked = false;

    this. myFlowerList.push(carnation);

    let gerbera = new flower();
    gerbera.name = "Gerbera";
    gerbera.price = 50;
    gerbera.availableQuantity = 1500;
    lily.isChecked = false;

    this. myFlowerList.push(gerbera);

    let orchid = new flower();
    orchid.name = "Orchid";
    orchid.price = 50;
    orchid.availableQuantity = 1500;
    lily.isChecked = false;

    this. myFlowerList.push(orchid);

  }

Today we will check how you can read flowers from backend REST API call. I am planning to use designer.mocky.io to mock my API call. To access list of flowers through API and to read it from Angular side that API should return an JOSN array. Therefor I will make a JSON array to define a response in my mock API as below.

{"flowers":[
    {"name":"Rose", "price":"100", "availableQuantity":"1000","isChecked":false},
    {"name":"Lilly", "price":"80", "availableQuantity":"2000","isChecked":false},
    {"name":"Tulip", "price":"100", "availableQuantity":"2300","isChecked":false},
    {"name":"Carnation", "price":"80", "availableQuantity":"1500","isChecked":false},
    {"name":"Gerbera", "price":"50", "availableQuantity":"1500","isChecked":false},
    {"name":"Orchid", "price":"200", "availableQuantity":"1500","isChecked":false}
]
}
]}

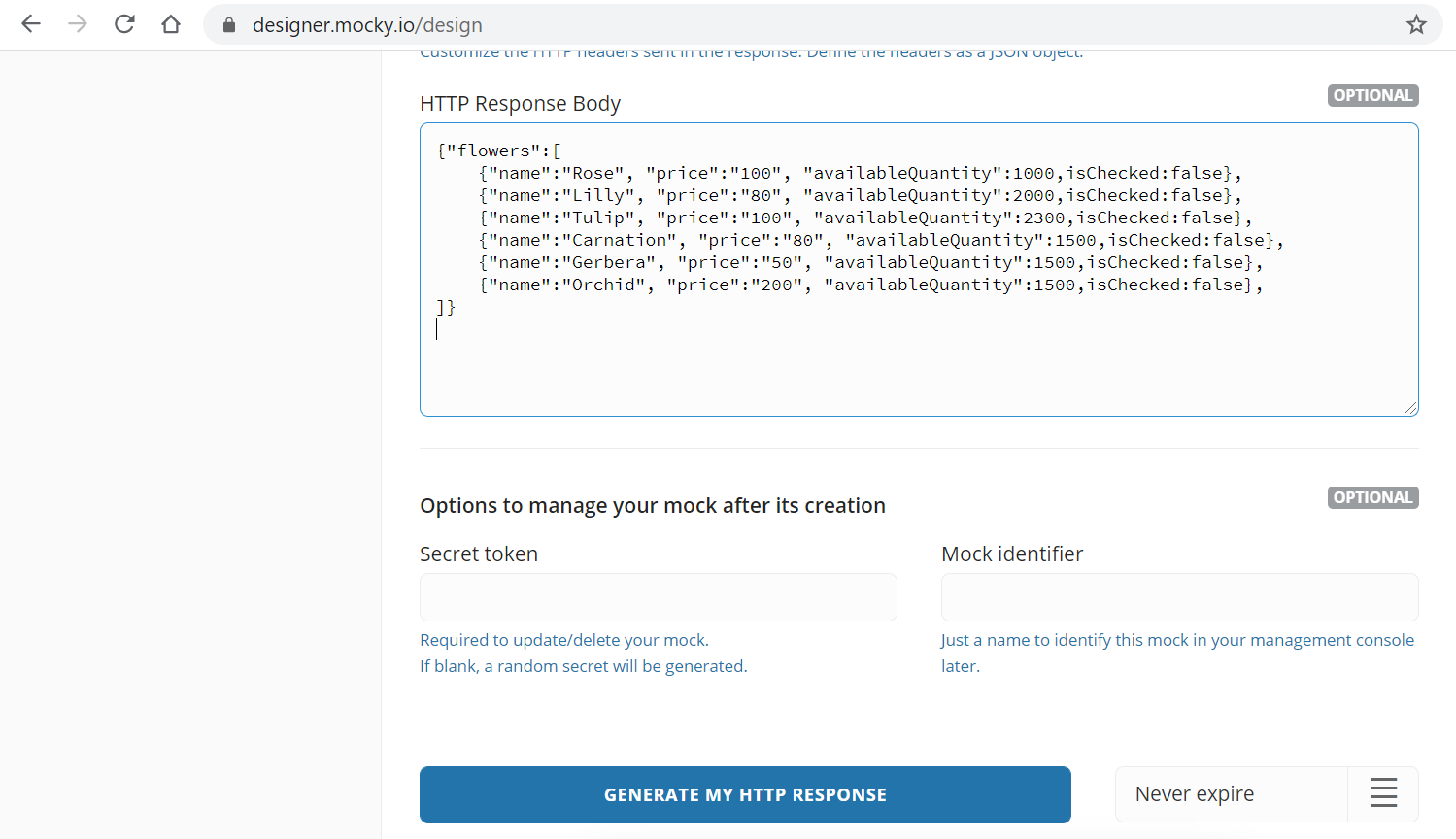

https://designer.mocky.io/ to mock my API call

Click on the generate my http response button to get the access URL. In my case it is as below.

Click on the generate my http response button to get the access run.mocky.io/v3

Now let us see how you can access this URL and display data in html. As I said earlier best place to access the data layer is service class.

To generate the service, please run below CLI command in your command prompt.

ng g s flower
ng g s flower command

Above command generate the default flower service as below.


import { Injectable } from '@angular/core';

@Injectable({
  providedIn: 'root'
})
export class FlowerService {

  constructor() { }
}


The @Injectable() decorator specifies that Angular can use this class with the Dependency Injection.

The metadata, providedIn: 'root', means that the FlowerService is visible throughout the application.
Now we will write a new method in a FlowerService class to access our API end point.

The HttpClient service in Angular 4.3+ is the successor to Angular 2's Http service. Instead of returning a Promise, its http.get() method returns an RxJS Observable object.

Therefore, to call our get API method I will import the HttpClient from Angualr/common/http and Observable module from RxJS. and then injected that to our service class as below.


import { Injectable } from '@angular/core';
import { HttpClient, HttpHeaders } from '@angular/common/http';
import { Observable } from 'rxjs';

@Injectable({
  providedIn: 'root'
})
export class FlowerService {

  constructor(private http:HttpClient) {}

    getFlowerList():Observable<any>{
      return this.http.get('https://run.mocky.io/v3/cee1c6e9-1491-4191-9054-ce7df1c1a500');
   }
}


getFlowerLIst() methods returns RxJS observable type and later in the landing component you can subscribe to access data.

To consume getFlowerList() method in our landing component we need to inject our service in to landing component through constructor and need to subscribe to the method.


constructor(private flowerService:FlowerService) { }
I have commented out my array with hard coded data and add the below codes to read data from service method.


this.flowerService.getFlowerList().subscribe(response=>{
      this.myFlowerList = response.flowers
    },
    err => console.error(err),
    () => console.log('done loading foods')
   )
I have added full code for landing component for you to refer.


import { Component, EventEmitter, OnInit, Output, ViewEncapsulation } from '@angular/core';
import { flower } from '../../domain/flower';
import { DataService } from 'src/app/services/data.service';
import { FlowerService } from 'src/app/services/flower.service';

@Component({
  selector: 'app-landing',
  templateUrl: './landing.component.html',
  styleUrls: ['./landing.component.scss'],

})
export class LandingComponent implements OnInit {

  myFlowerList:flower[]=[];
  selectedFlowers: string[] =[];

  checkedList:string[]=[];
  searchText:string='';
  constructor(private dataService:DataService, private flowerService:FlowerService) { }

  ngOnInit() {
    this.mySellingFlowers();
    this.dataService.getSearchText().subscribe(response => {
      this.printSearchtext(response);
    })
  }

  printSearchtext(searchText){
    this.searchText = searchText;
  }

  printOrder(flowerName){
    if(this.selectedFlowers.indexOf(flowerName)<0){
      this.selectedFlowers.push(flowerName)
    }
    else{
      let index = this.selectedFlowers.indexOf(flowerName);
      this.selectedFlowers.splice(index,1);
    }

  }

  mySellingFlowers(){
    // let rose = new flower();
    // rose.name = "Rose";
    // rose.price = 100;
    // rose.availableQuantity = 1000;
    // rose.isChecked = false;
    // this. myFlowerList.push(rose);

    // let lily = new flower();
    // lily.name = "Lilly";
    // lily.price = 80;
    // lily.availableQuantity = 2000;
    // lily.isChecked = false;
    // this. myFlowerList.push(lily);

    // let tulip = new flower();
    // tulip.name = "Tulip";
    // tulip.price = 100;
    // tulip.availableQuantity = 2300;
    // lily.isChecked = false;

    // this. myFlowerList.push(tulip);

    // let carnation = new flower();
    // carnation.name = "Carnation";
    // carnation.price = 50;
    // carnation.availableQuantity = 1500;
    // lily.isChecked = false;

    // this. myFlowerList.push(carnation);

    // let gerbera = new flower();
    // gerbera.name = "Gerbera";
    // gerbera.price = 50;
    // gerbera.availableQuantity = 1500;
    // lily.isChecked = false;

    // this. myFlowerList.push(gerbera);

    // let orchid = new flower();
    // orchid.name = "Orchid";
    // orchid.price = 50;
    // orchid.availableQuantity = 1500;
    // lily.isChecked = false;

    // this. myFlowerList.push(orchid);

    this.flowerService.getFlowerList().subscribe(response=>{
      this.myFlowerList = response.flowers
    },
    err => console.error(err),
    () => console.log('done loading foods')
   )

  }

  trackFlowers(index,flower){
    return flower?flower.name:undefined
  }
}


The subscribe() method takes three arguments which are event handlers. They are called onNext, onError, and onCompleted.

The onNext method will receive the HTTP response data

The onError event handler is called if the HTTP request returns an error code such as a 500.

The onCompleted event handler executes after the Observable has finished returning all its data.

myFlowerList array contains data return from the API call and using *ngFor you can iterate and display it in a HTML as below.


<div *ngFor="let flower of myFlowerList;trackBy:trackFlowers">
      <flower-card [title]="flower.name" (selectedFlower)="printOrder($event)"></flower-card>
</div>
To use the Angular HttpClient, we need to inject it into our app's dependencies in app.module.ts file as below.


imports: [
    BrowserModule,
    AppRoutingModule,
    CardModule,
    CheckboxModule,
    CommonModule,
    FormsModule,
    InputTextModule,
    HttpClientModule
    ],
Unless it gives you below error.

core.js:7187 ERROR Error: Uncaught (in promise): NullInjectorError: StaticInjectorError(AppModule)[HttpClient]:
  StaticInjectorError(Platform: core)[HttpClient]:
    NullInjectorError: No provider for HttpClient!
NullInjectorError: StaticInjectorError(AppModule)[HttpClient]:
I have added app.module.ts file code after adding the dependency and you can check full code to the app by accessing GitHub.


import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';

import { AppRoutingModule } from './app-routing.module';
import { AppComponent } from './app.component';
import { LandingComponent } from './modules/landing/landing.component';
import { HomeComponent } from './modules/home/home.component';
import { CardModule } from 'primeng/card';
import {CheckboxModule} from 'primeng/checkbox';
import { CommonModule } from '@angular/common';
import { FormsModule }    from '@angular/forms';
import {InputTextModule} from 'primeng/inputtext';
import { FlowerCardComponent } from './modules/cards/flower-card/flower-card.component';
import { HttpClientModule } from '@angular/common/http';

@NgModule({
  declarations: [
    AppComponent,
    LandingComponent,
    HomeComponent,
    FlowerCardComponent
  ],
  imports: [
    BrowserModule,
    AppRoutingModule,
    CardModule,
    CheckboxModule,
    CommonModule,
    FormsModule,
    InputTextModule,
    HttpClientModule

  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }
Once you load the app it will show same data as before by getting the data from backend API call.

My Flower Store Angular App

Conclusion

In this tutorial, we used HttpClient and RxJS modules to retrieves data from a REST API using the get() method of HttpClient. First I have explained how you can generate service component using the CLI command. Then I have described how  to subscribe to the RxJS Observable returned by the get() method and how to use the *ngFor directive to iterate over fetched data in the template.
